Touch Screen Interactive Information Kiosk For Retail Ordering Paymen
Multimedia Information Touch Screen Kiosk For self-service , Interactive Manner TSK8006
Detailed Product Description
1, Multimedia information kiosk with modern, stylish.sleek design
2, 17", 19" SAW touchscreen available
3, OEM&ODM available
Key Features
- High-sensitivity, high light-transmittance, anti-glare, vandal-proof SAW touchscreen
- 17″, 19″TFT LCD displays for option
- Durable steel enclosure, sleek, extra slim, stylish and ADA compliant design
- Built-in hi-fi amplified speakers
- Customizable
Application
This multimedia information kiosk is commonly used in office building, court house, hospital/medical center, airport, university, government building, shop, theater and other public places where information and/or transaction are provided in self-service and interactive manner.
|
Technical Specifications
|
|
TFT LCD Display
- Resolution: 1024x768(15″)
1280x1024(17″and 19″)
- Brightness: 250~300 nits
- Contrast ratio: 450:1
- Response time :8 ms
|
Touch Screen
- Vandal-proof SAW touch screen
- Material: Heat tempered glass with thickness 6mm
- Resolution: 4096*4096
- Deviation of error: <2mm
- Light Transmittance: ≥ 92%
- Surface Hardness: 7 Mohs scale
- Lifetime:50, 000, 000 times at one single location
- Response time: less than 16 ms
- Touch activation force: 10~100g
|
Enclosure
- Durable steel enclosure (different colors for option)
-Built-in power control panel, and hi-fi speakers.
-Two cooling fans for computer board and main body separately
-RJ45/RJ11 interface
-Large access doors with tubular locks/keys
|
|
Mother Board
-
CPU: Intel Pentium dual core E5300
(upgradeable on request)
-
RAM: 1GB (upgradeable on request)
-
Hard Disc: 250GB (upgradeable on request)
|
Operation System
LINUX/Win3.X/98/2000/NT4.0/XP
|
Working Voltage
AC 220V, 50 Hz or 110V, 60 Hz for option
|
|
Ambient Environment
WorkingTemperatur:-20℃~65℃;
RelativeHumidity: 30%~90%
Storage Temperature:-40℃~80℃
Relative Humidity: 5%~95%
|
Dimensions
-
138(height) x 52(width) x 28(depth) CMs
-
Packing dimension: 150 x 60 x 46cm
|
Optional Peripherals
Stainless steel keyboard, card reader/writer, barcode scanner, printer, video camera etc.
|
|
|

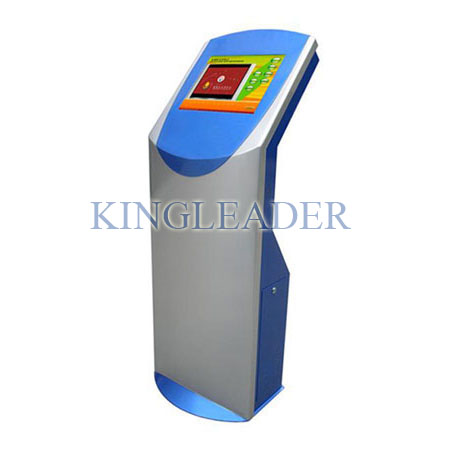

Free Standing Interactive Information Kiosk Images
|
